By Oleksandr Shevchenko — Apr 12, 2025

Resilience: Internal Services and External Access

Or how to keep services running even when the world (and your main provider) goes down

Today, almost every organization has internal services that, for various reasons, need to be accessible externally: email, telephony, VPN, information exchange services, etc. This raises a logical question - what happens if the internet simply disappears?

Of course, working without electricity or internet is challenging. But it's even worse when your provider is operational, yet your services are inaccessible because they're tied to a specific IP address, a single provider, a single route. If that provider fails, you vanish from the Internet.

I'd like to share a real-life case and some ideas on how to enhance resilience without spending thousands of dollars monthly.

The Problem: One Provider — One IP Address

The weakest link is the public IP address through which the world accesses your services. If this address is provided by only one provider, your reliability equals that of the provider. In my case, the main provider suddenly stopped working one morning due to technical issues, causing us to lose:

External access to email
Part of IP telephony
Integration and information exchange services with partners
VPN for remote employees

Everything that could fail - did. The reason: dependence on a single IP address from one provider.

Of course, the provider eventually recovered. After this incident, we developed an action plan for such cases. Naturally, once services were restored, we asked ourselves, "What can we do to prevent this from happening again?" Spoiler: unfortunately, there are no simple solutions.

Solution #1: Own Autonomous System (AS)

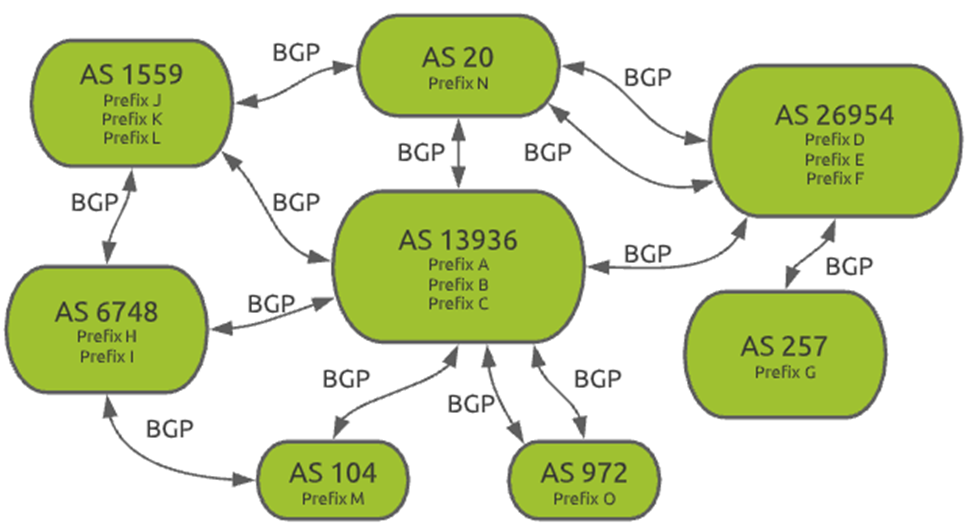

Having your own AS is like having your own registration in the internet. You obtain a pool of IP addresses and announce to the world via BGP (Internet routing decision protocol): "I'm accessible through these providers." If one fails, another remains.

Advantages:

Maximum resilience and autonomy
Availability remains even with significant degradation of external connections
Your IPs stay with you, regardless of the provider

Disadvantages:

Requires knowledge of network stack, BGP, router configuration
Not all providers agree to connect external AS

Solution #2: Multiple Providers – "Budget" Redundancy

A basic option is to connect additional providers. In our case:

ISP 1 – main channel
ISP 2 – backup, but with unstable reliability
Starlink for Business – as a "last resort," but satellite internet has its own issues

It seems simple - manually switch the IP address and continue working. However, each provider has a different IP address, and services don't "adapt" quickly, or the process takes a lot of time. Automatic switching in such cases is either very complex or impossible.

Conclusion: Manual mode works. Automatic mode - only if you put in significant effort or have your own AS.

Solution #3: Proxy or NAT via Data Center

Another option is to move the gateway or proxy server to the cloud/data center.

Scenario:

Internally, services operate as usual
Externally, everything goes through a tunnel to the cloud (VPN, GRE, WireGuard)
In the cloud or data center – a public IP where your email, SIP, VPN, services, etc., "live"
